Variable Volume Swash Plate Design for Open Loop Applications:
Model No. |
Max. Displacement cm³/rev |
Suction Port |
Delivery Port |
Mounting Flange |
Download PDF |

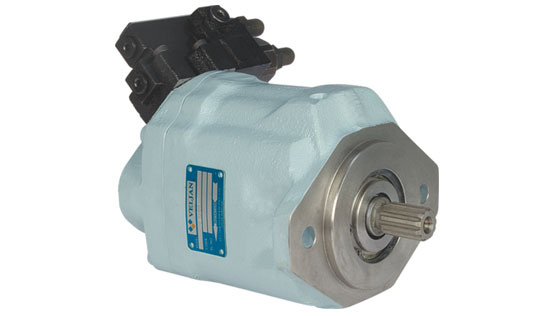

J9V009 |
9 |
M27 X 2, 11/16-12UNF |
M27 X 2, 11/16-12UNF |
SAE 82-2(A)ISO-3019/2 |
|

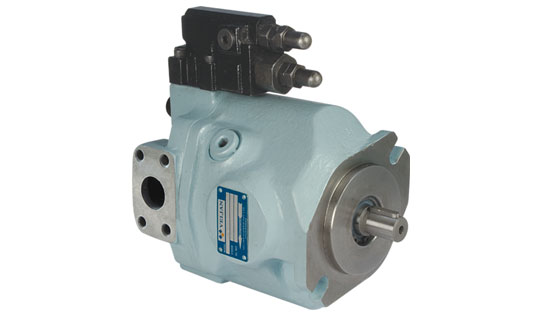

J9V018 |
18 |
1" SAE |
¾" SAE |
SAE 82-2(A)ISO-3019/2 |
|

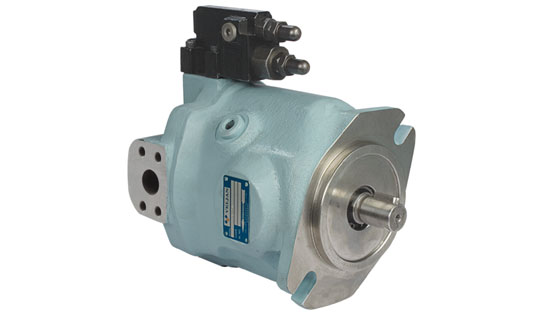

J9V027 |
27 |
1¼" SAE |
¾" SAE |
SAE 101-2(B)ISO-3019/2 |
|

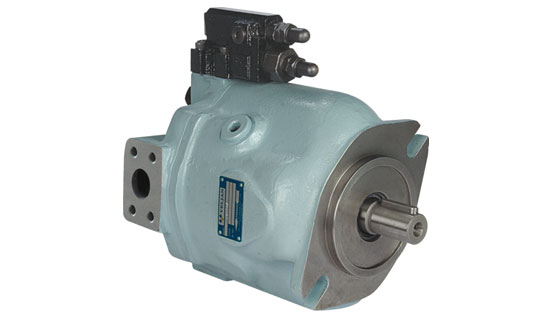

J9V045 |
45 |
1½" SAE |
1" SAE |
SAE 101-2(B)ISO-3019/2 |
|

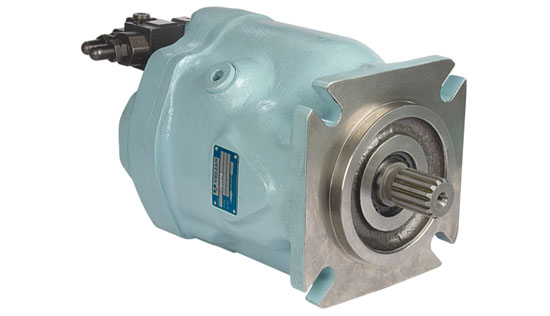

J9V072 |
72 |
2" SAE |
1¼" SAE |
SAE 127-4(C)ISO-3019/2 |
|
J9V099 |
100 |
2½" SAE |
1¼" SAE |
SAE 127-2(C)ISO-3019/2 |
|
J9V135 |
140 |
2½" SAE |
1¼" SAE |
SAE 152-4(C)ISO-3019/2 |
J9V009
J9V018
J9V027
J9V045
J9V072
Series |
Model |
Displacement |
Max.Operating Pressure (BAR) |
Max. Speed (RPM) |
Mounting |
GOLDCUP |
P6 |
98.3 |
420 |
3000 |
SAE-C - 2 bolts, SAE-D - 4 bolts |
GOLDCUP |
P7 |
118.8 |
420 |
3000 |
SAE-C - 2 bolts, SAE-D - 4 bolts |
GOLDCUP |
P8 |
131.1 |
310 |
2100 |
SAE-C - 2 bolts, SAE-D - 4 bolts |
GOLDCUP |
P11 |
180.3 |
420 |
2400 |
SAE-E - 4 bolts |
GOLDCUP |
P14 |
229.5 |
420 |
2400 |
SAE-E - 4 bolts |
GOLDCUP |
P24 |
403.2 |
350 |
2100 |
SAE-E - 4 bolts |
GOLDCUP |
P30 |
501.5 |
350 |
1800 |
SAE-E - 4 bolts |
WORLDCUP |
P6W |
98.3 |
420 |
2050 |
SAE-D - 4 bolts |
WORLDCUP |
P7W |
118.8 |
420 |
1950 |
SAE-D - 4 bolts |
WORLDCUP |
P8W |
131.1 |
310 |
1800 |
SAE-D - 4 bolts |
* For more details Send Enquiry
